Radiator

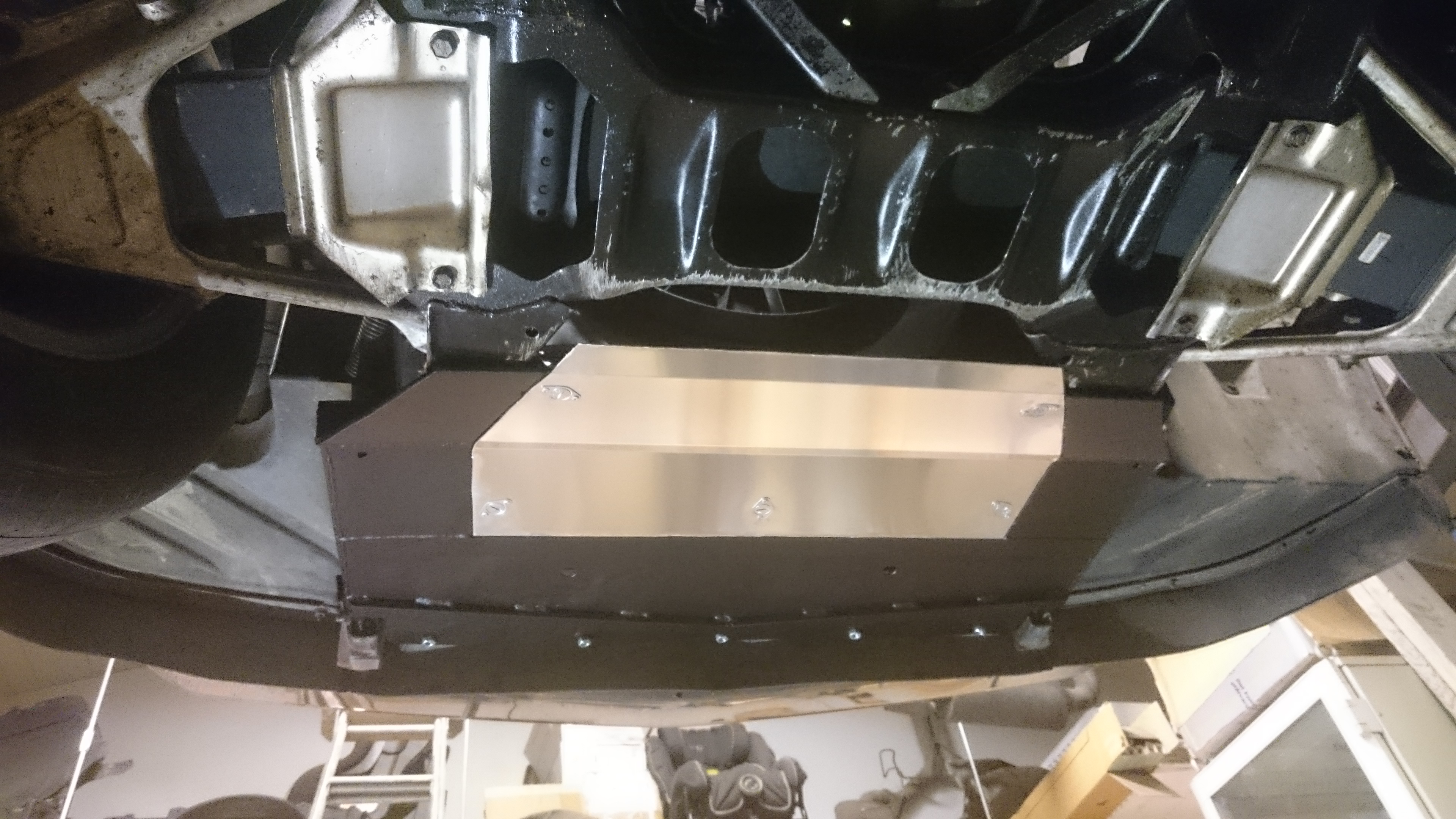

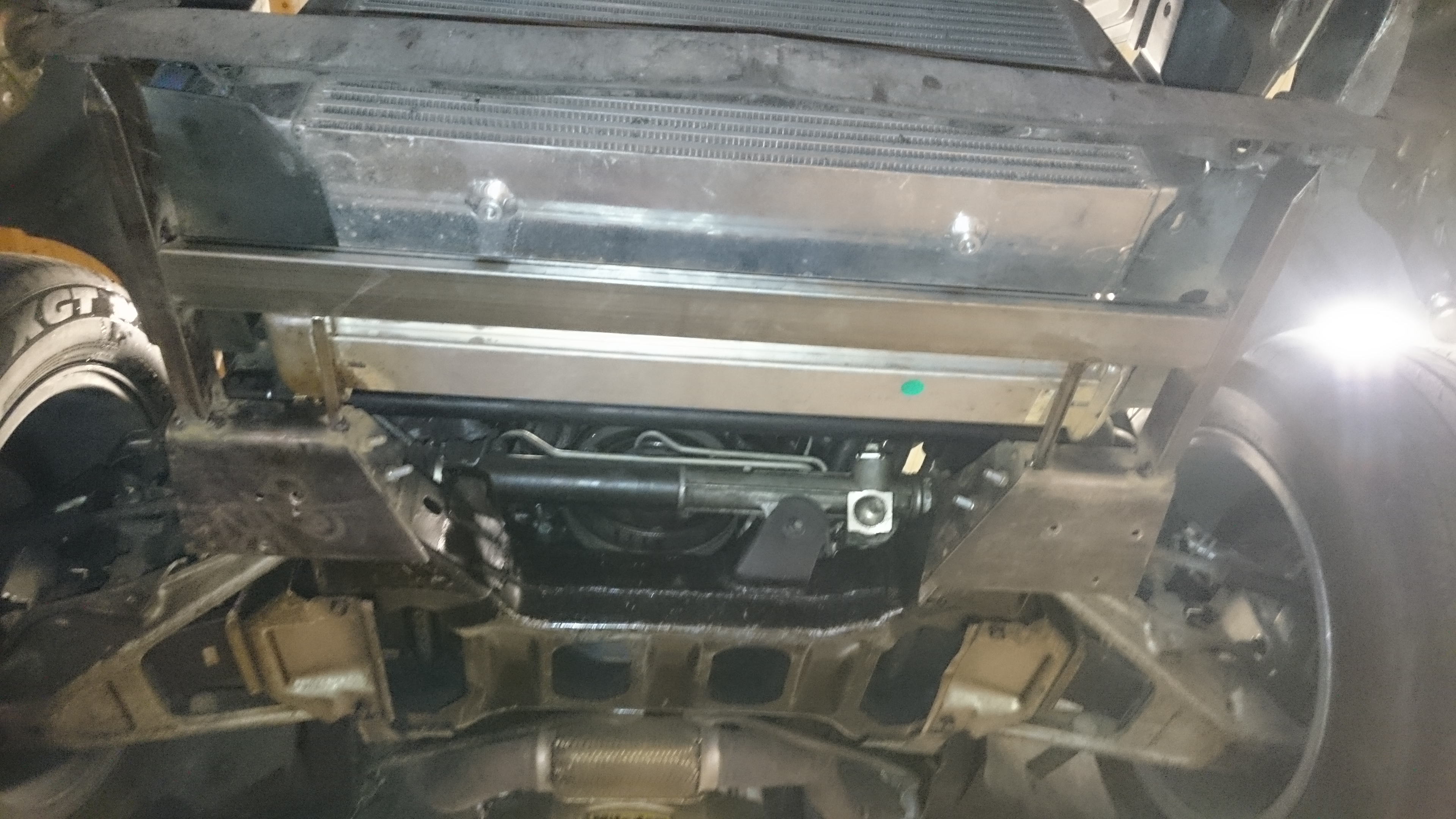

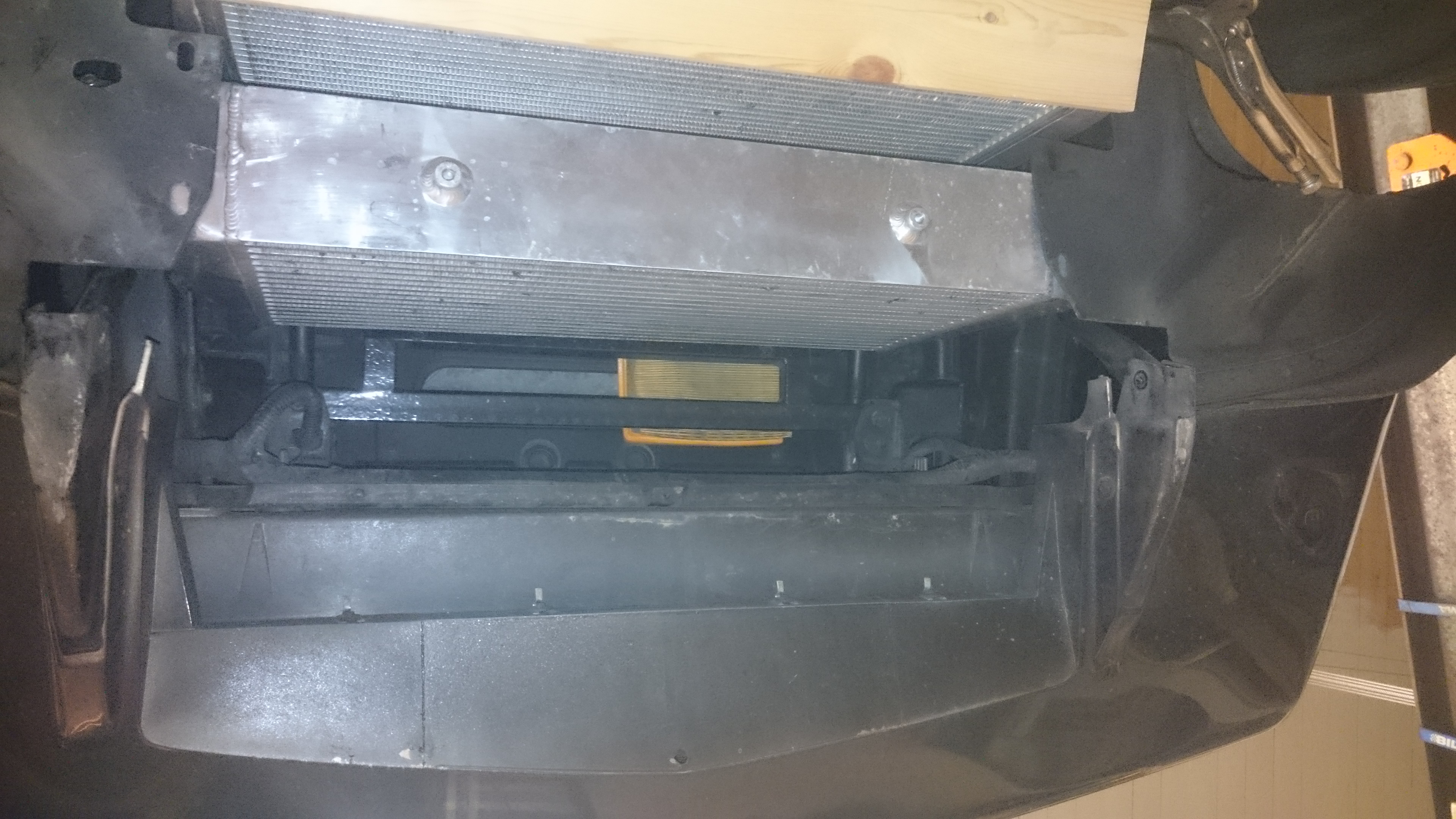

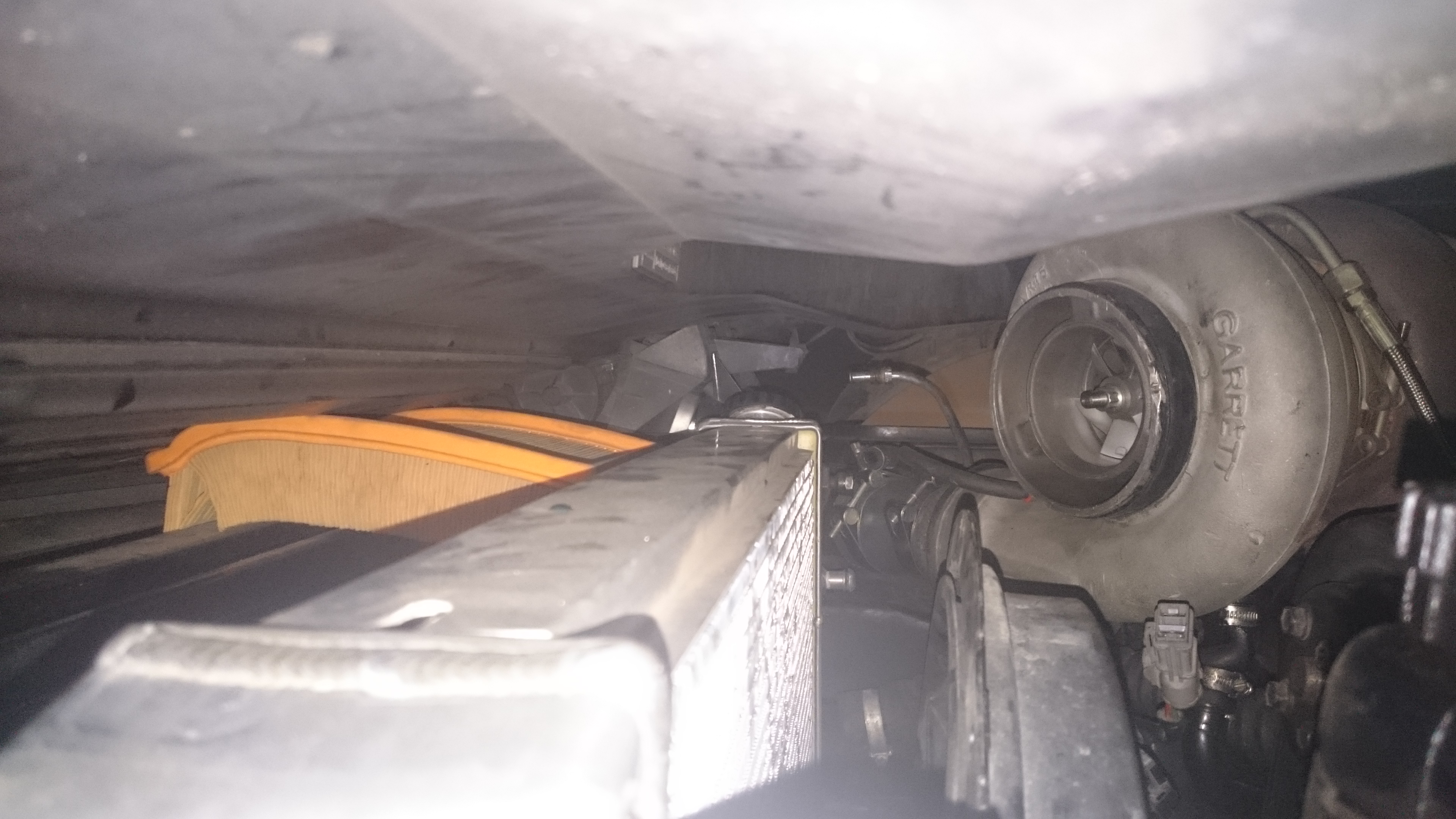

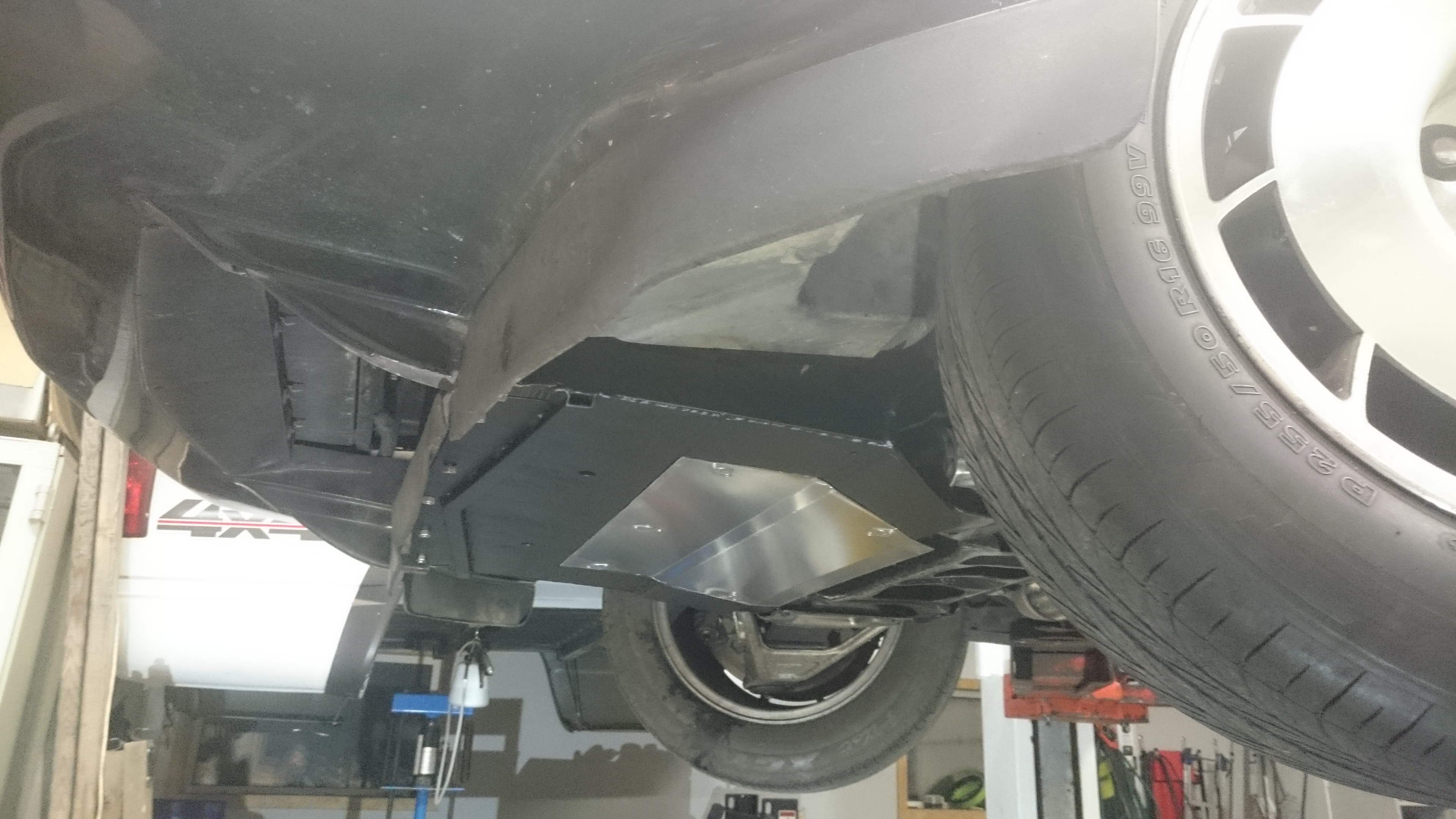

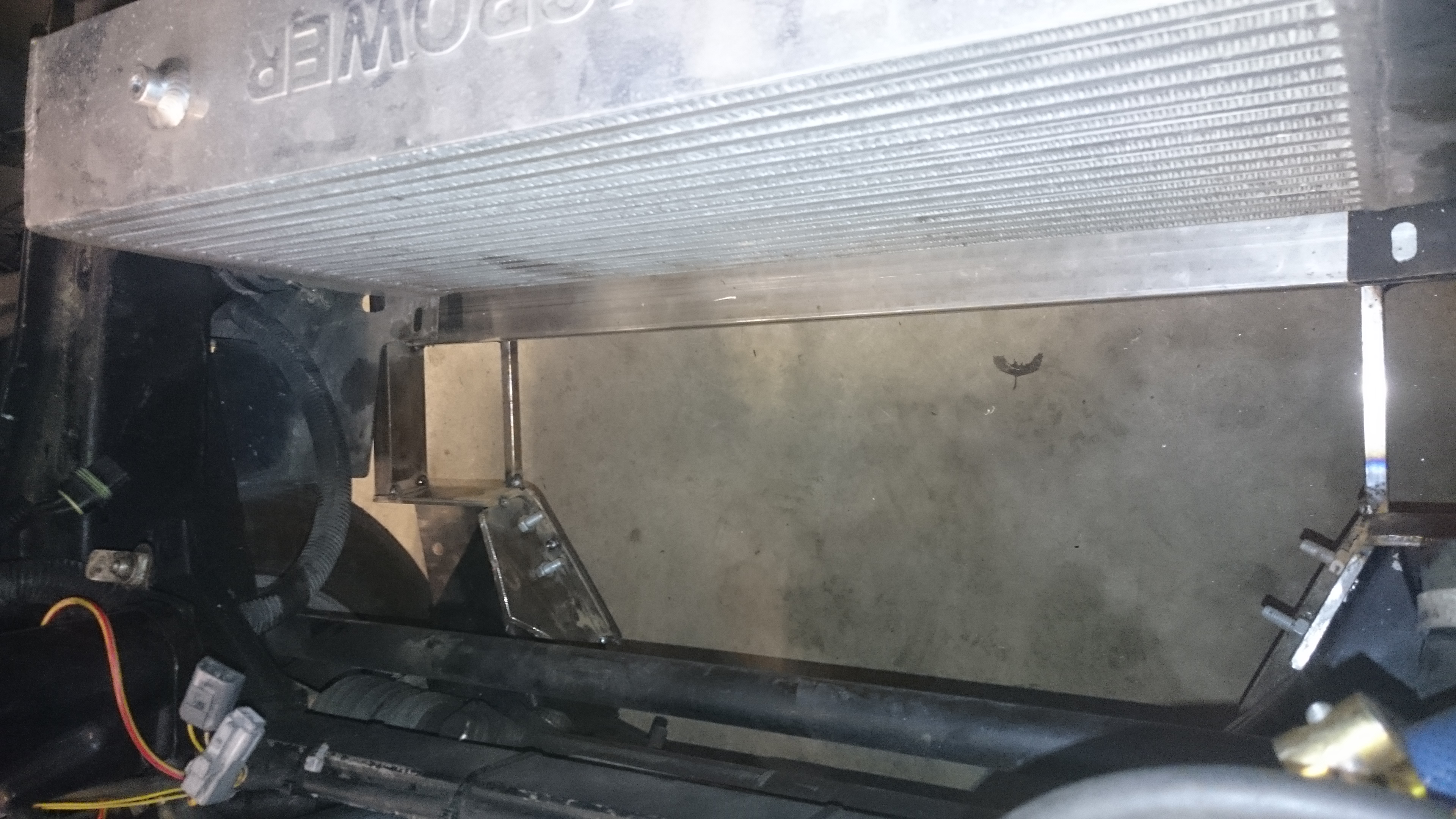

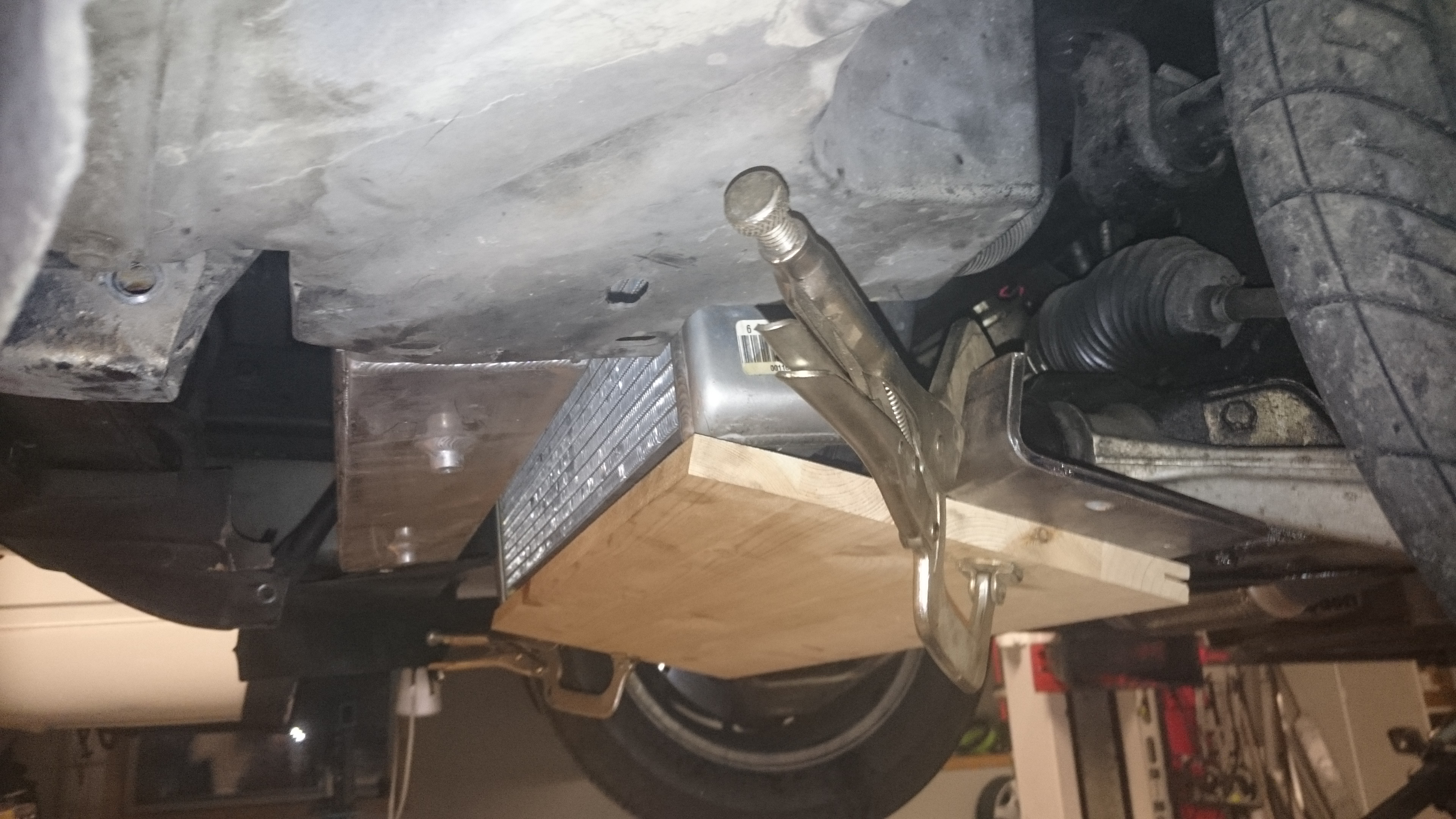

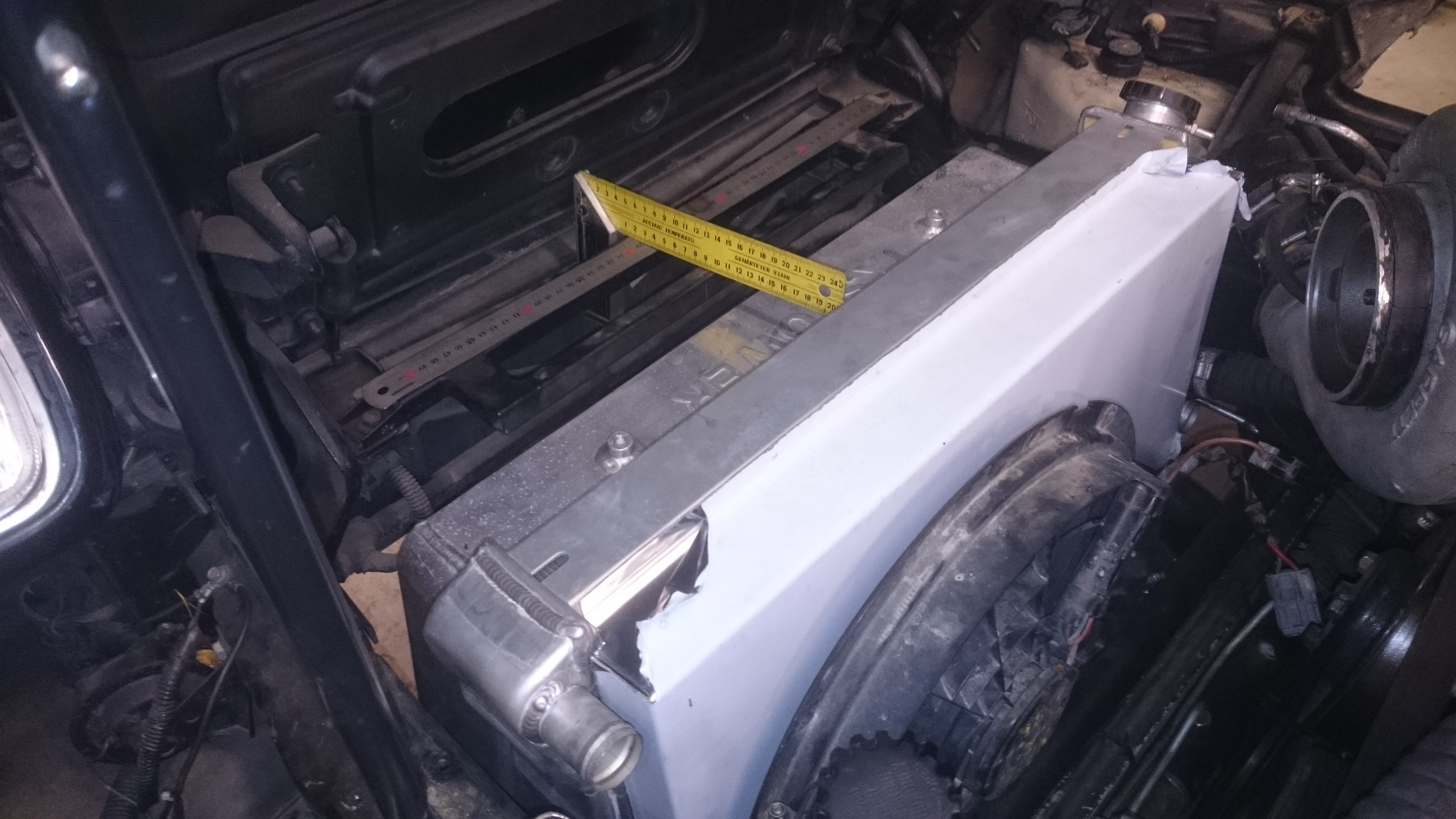

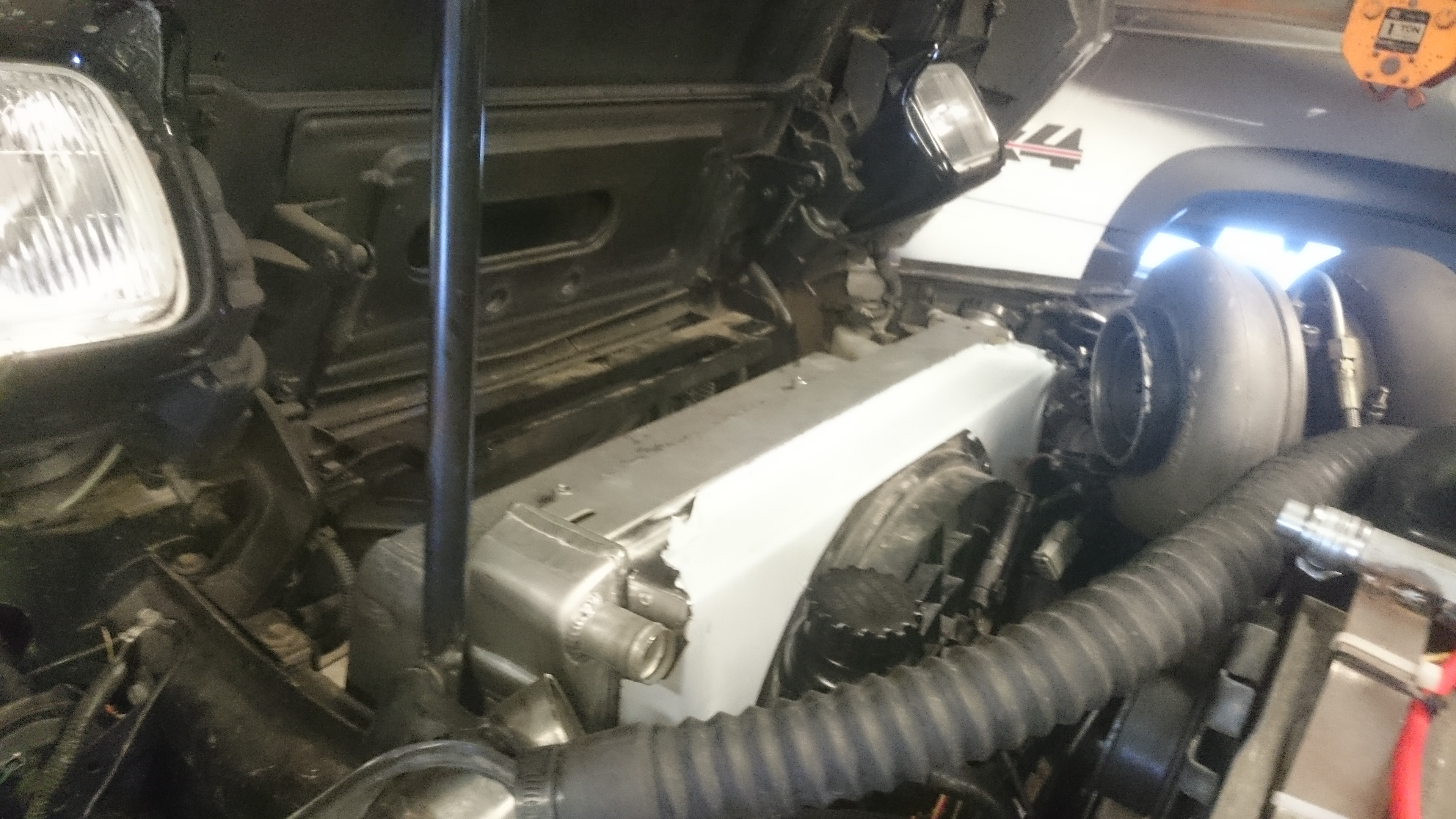

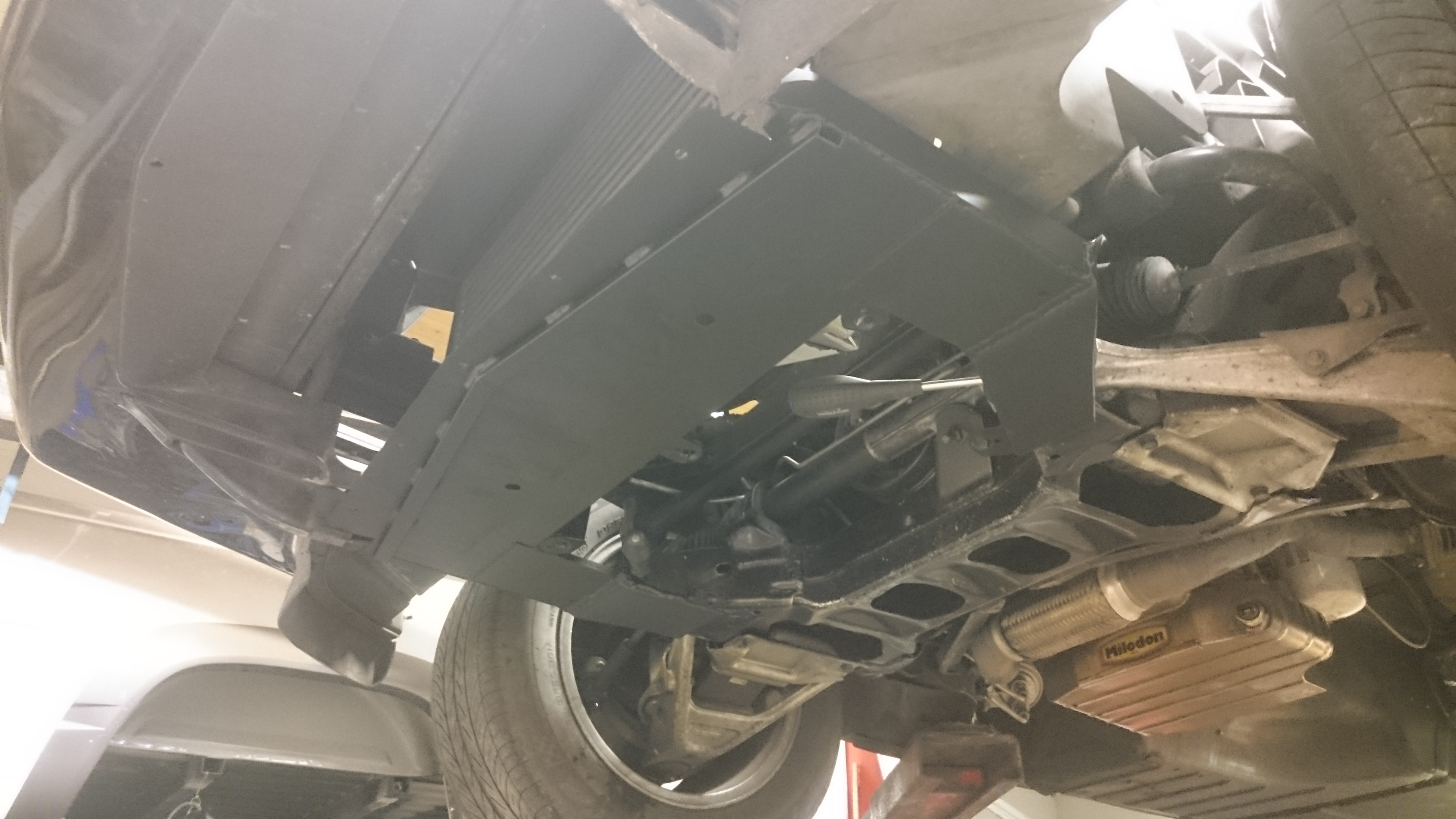

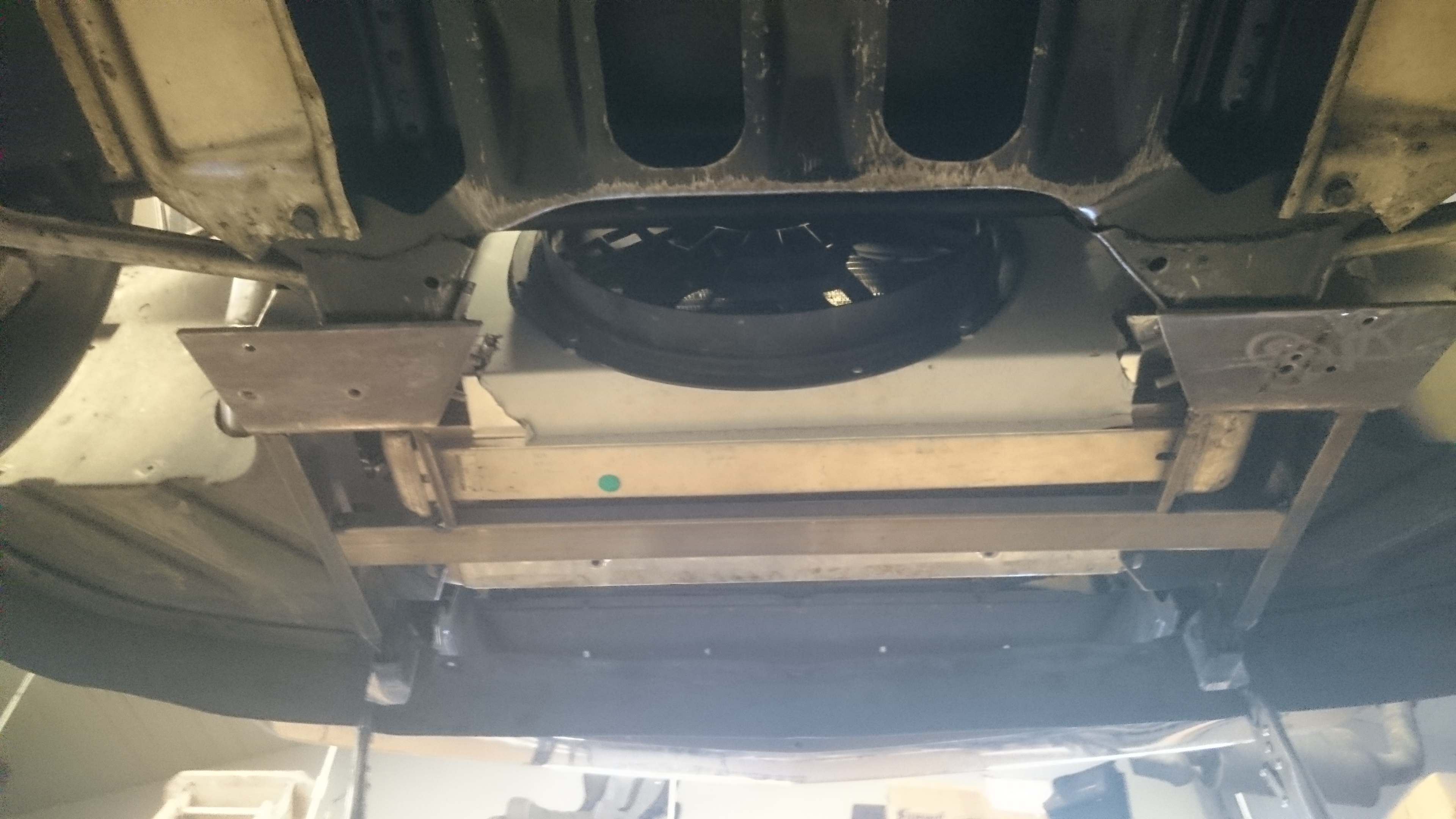

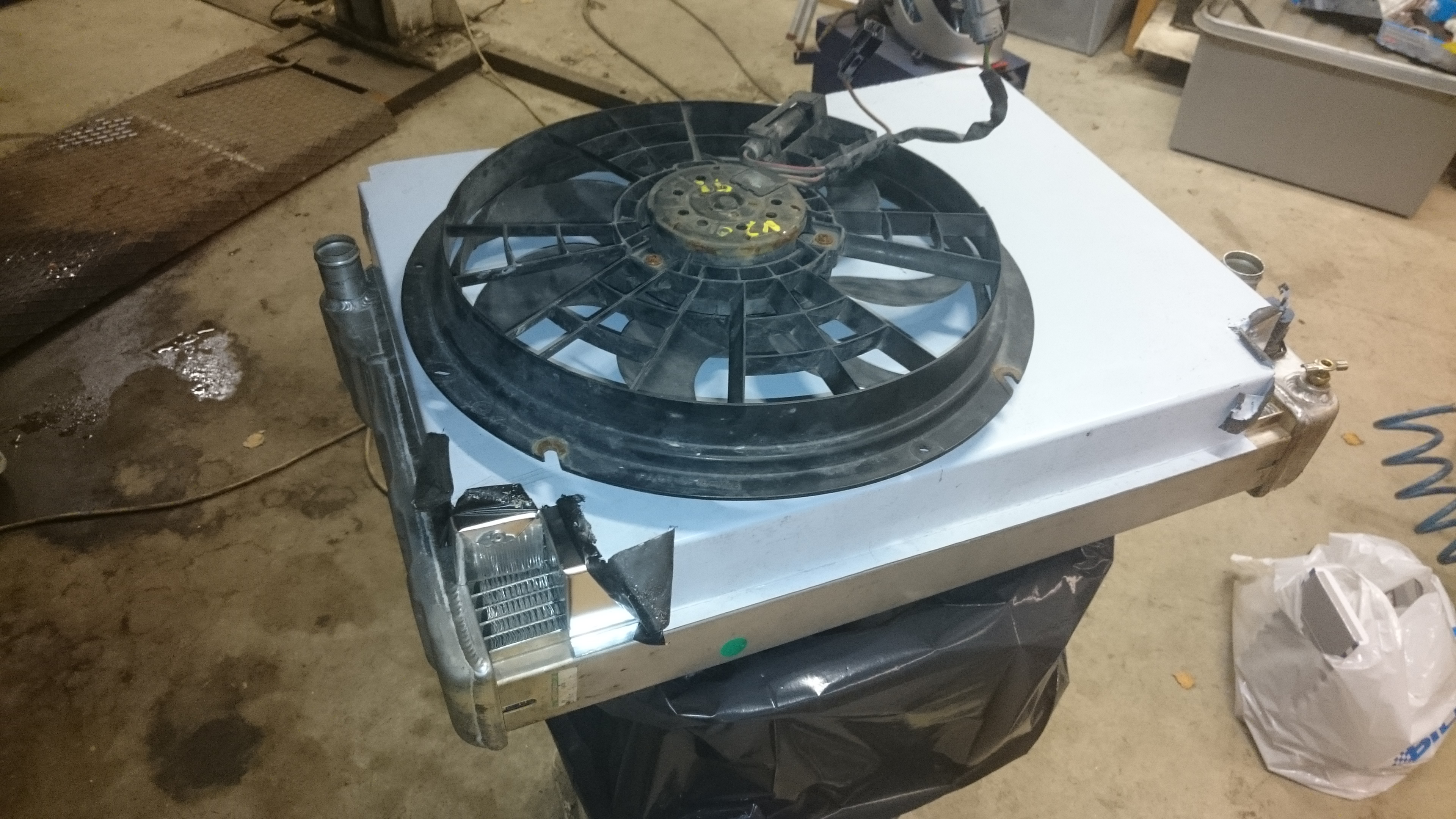

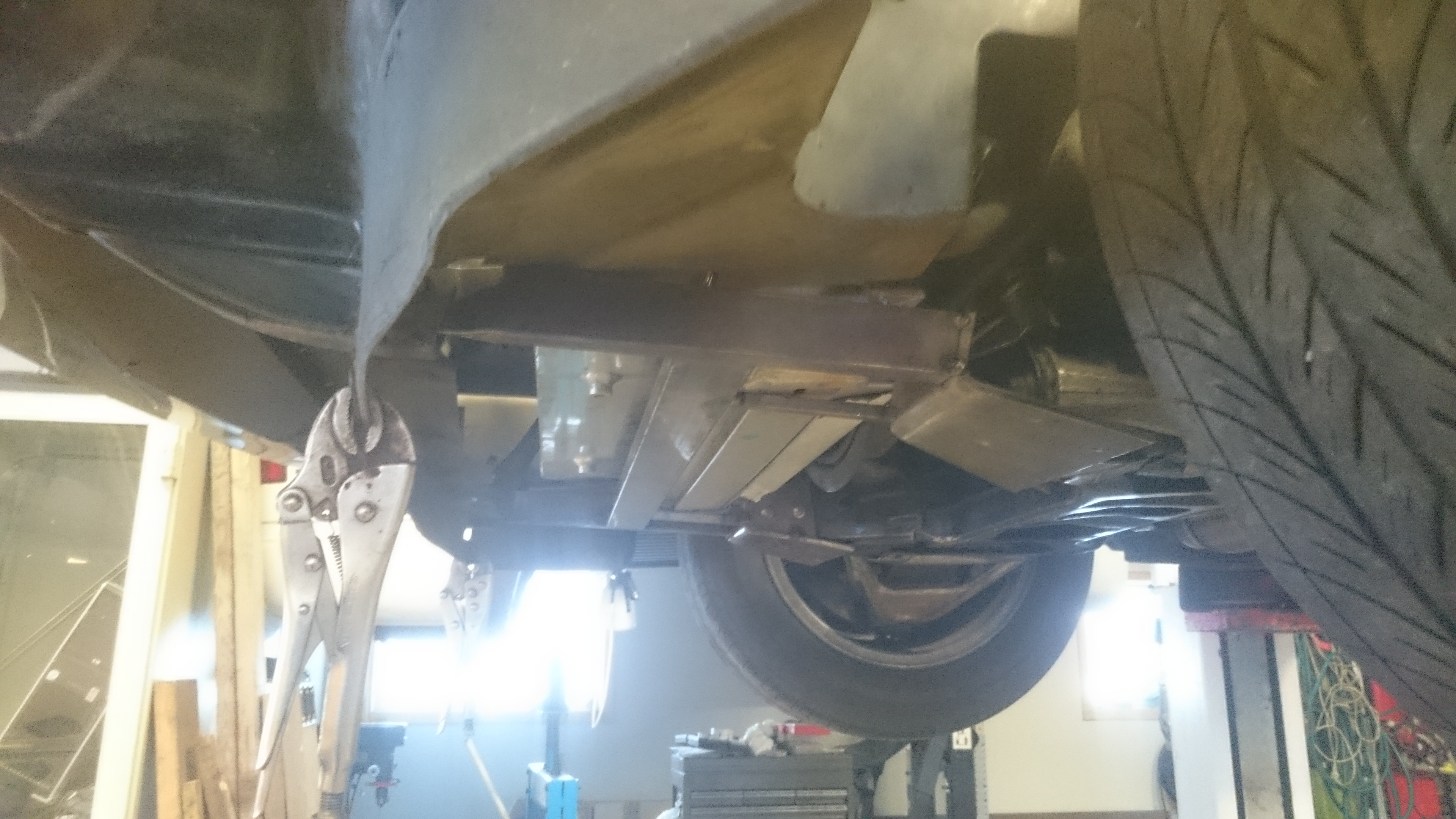

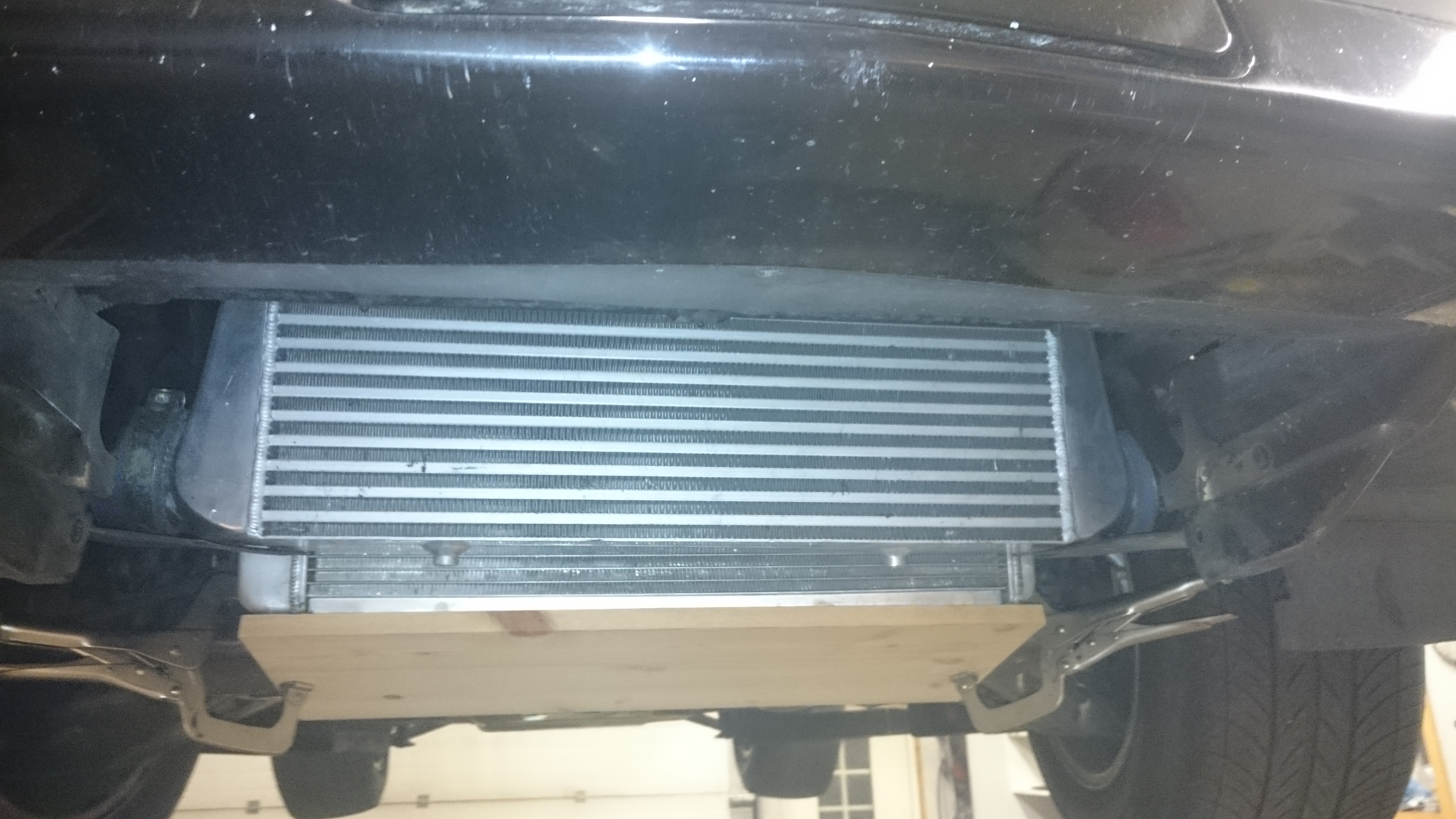

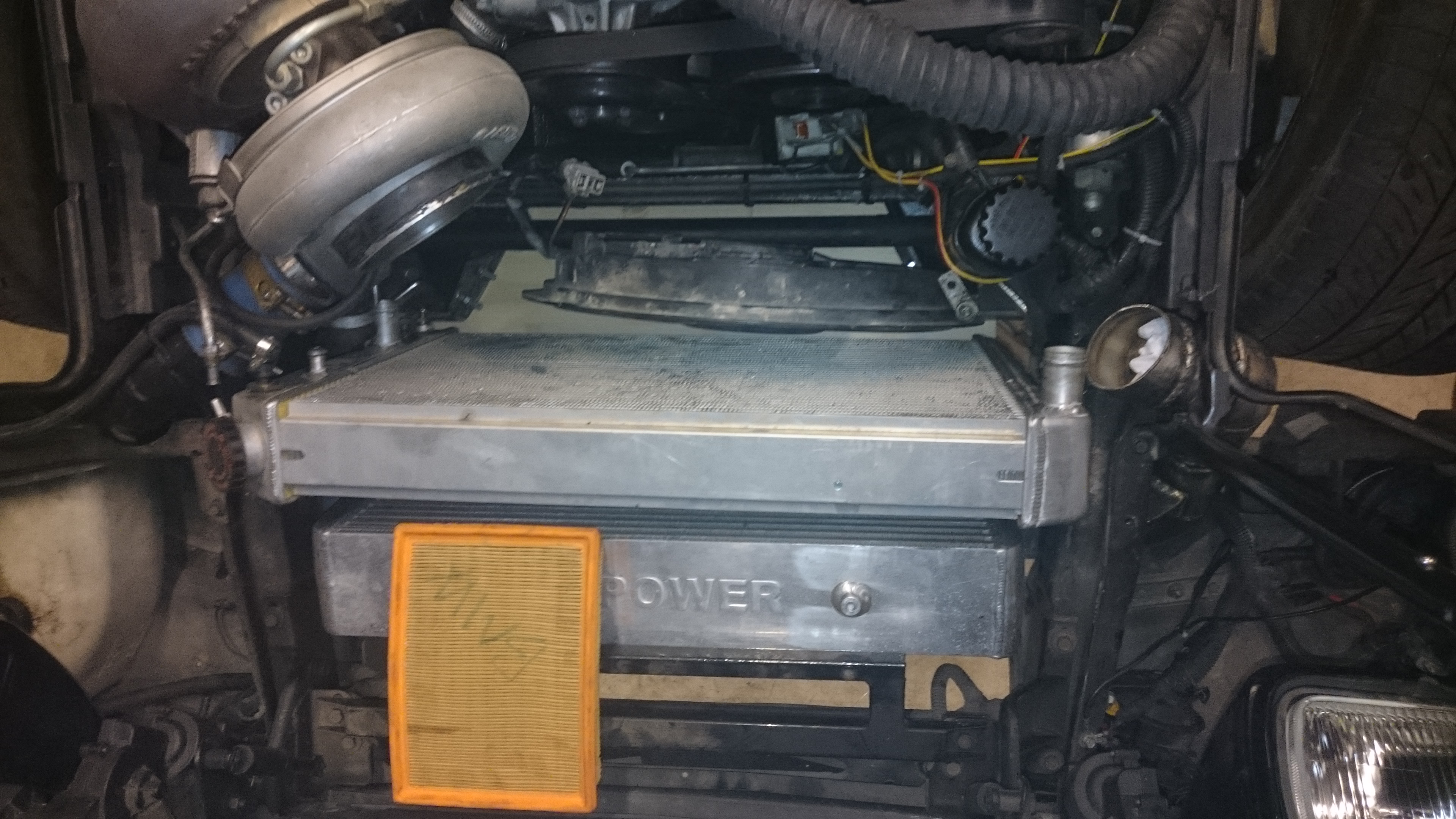

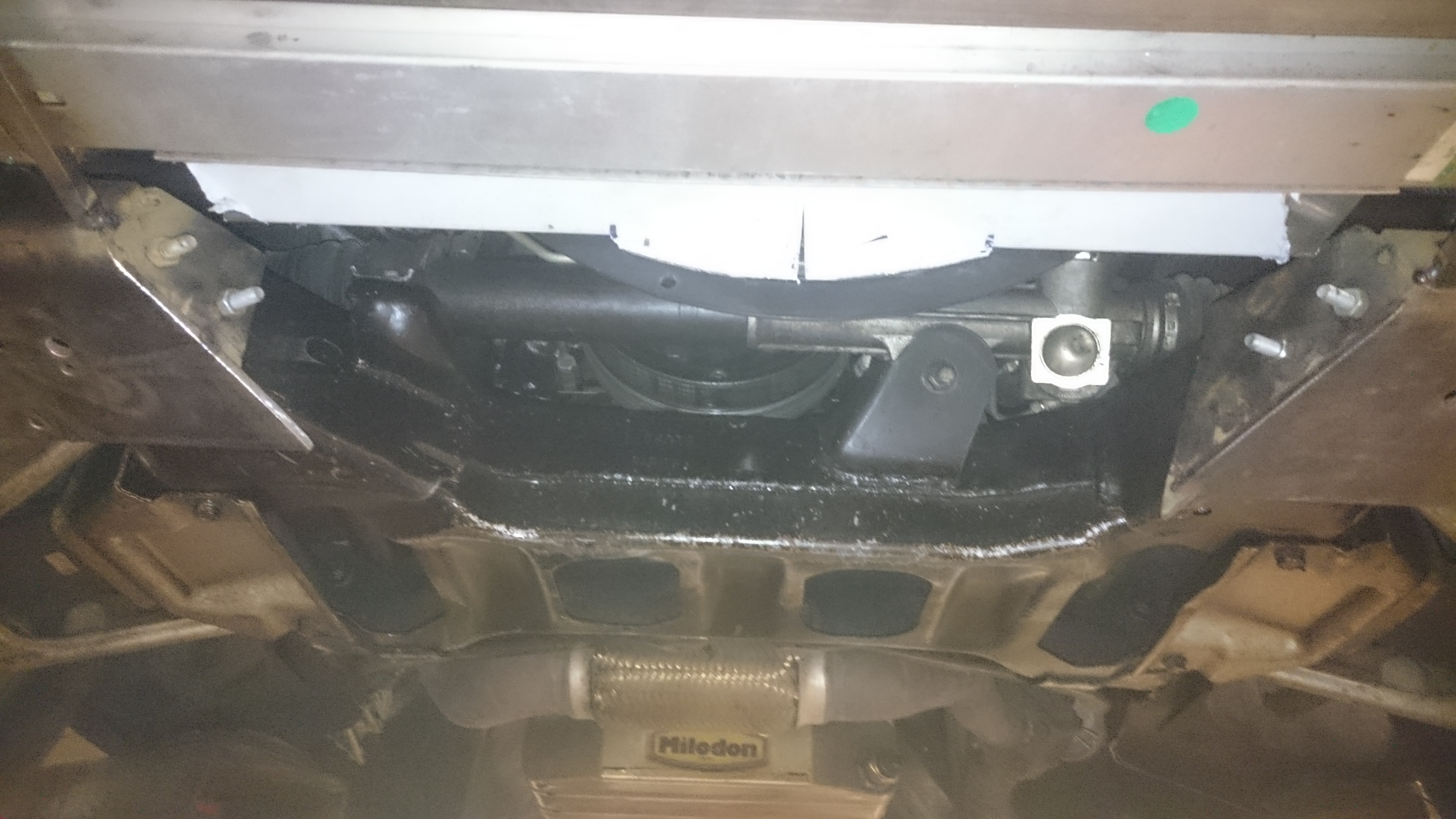

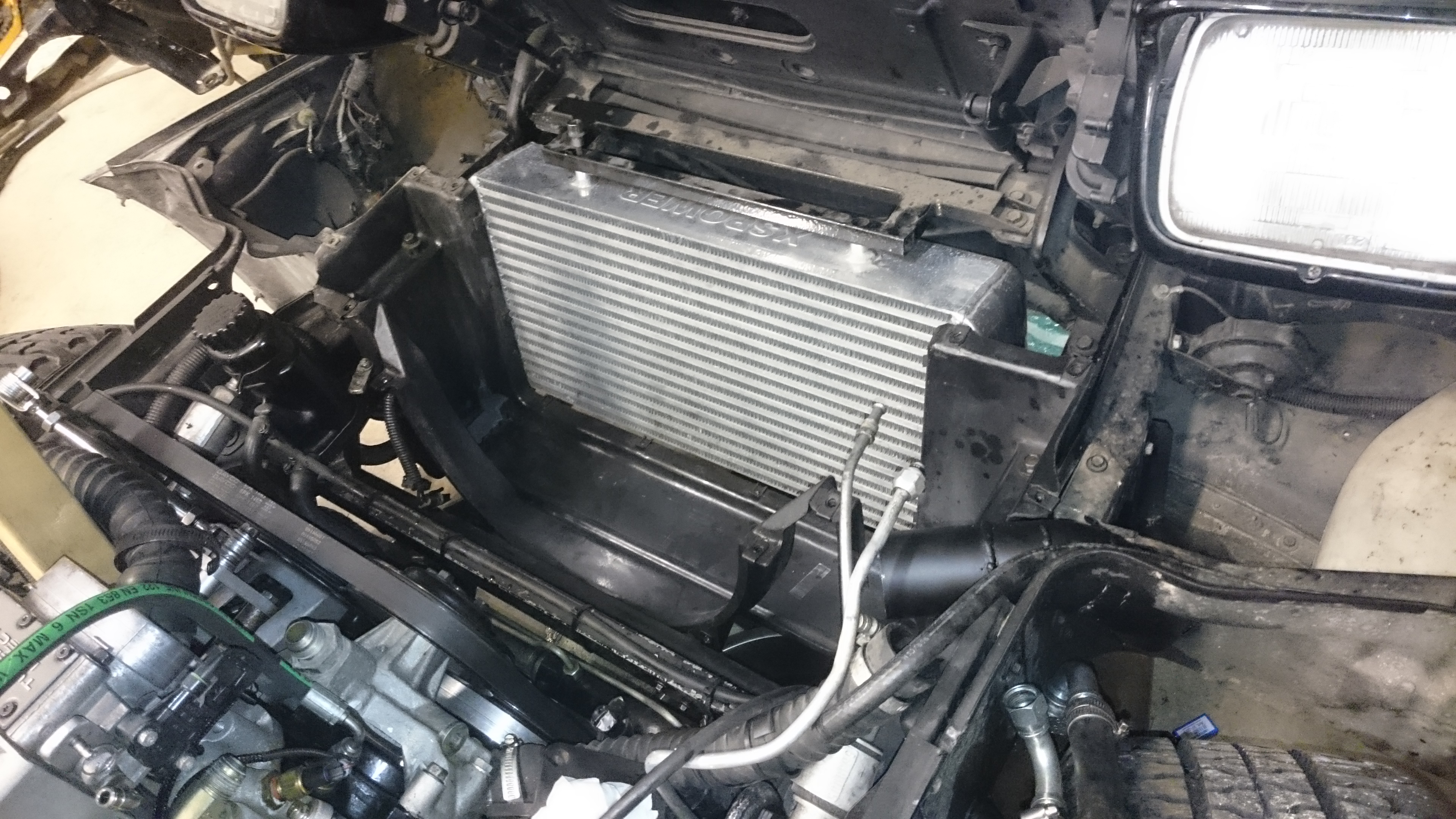

To make room for an air-duct over the radiator and improve cooling I mounted the radiator lower. I removed the original diagonal braces from crossmember to front. I replaced them with a new support frame that goes around the radiator. I also changed the angle of radiator and intercooler to make room for new air filters.
