Exhaust part 2

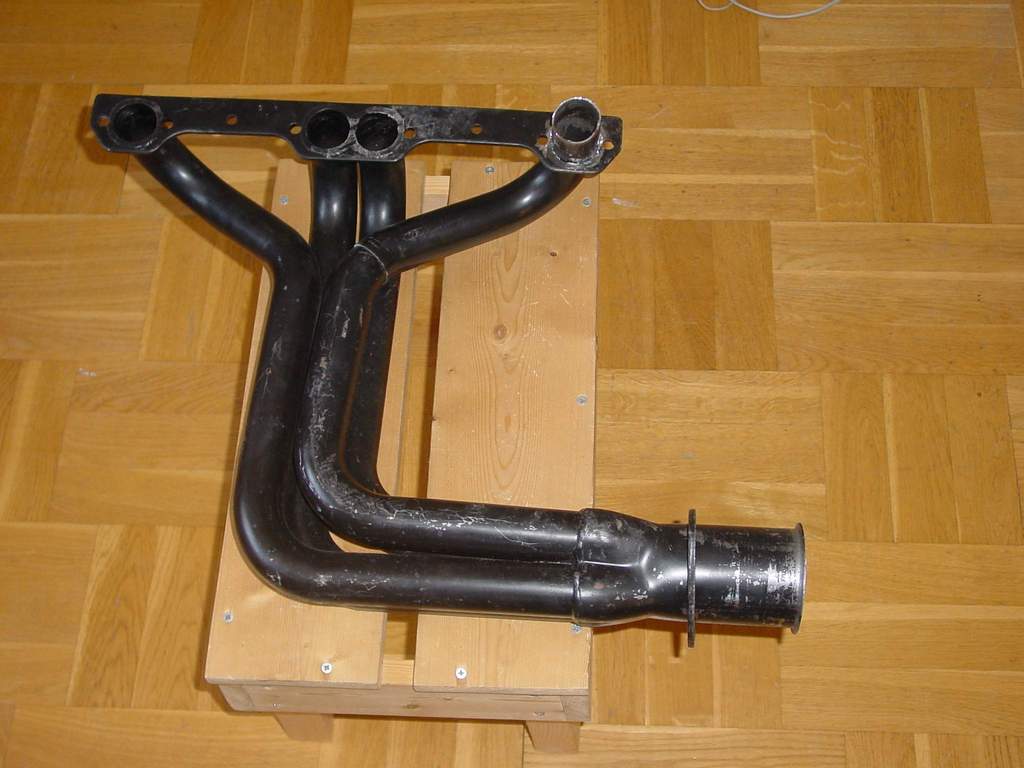

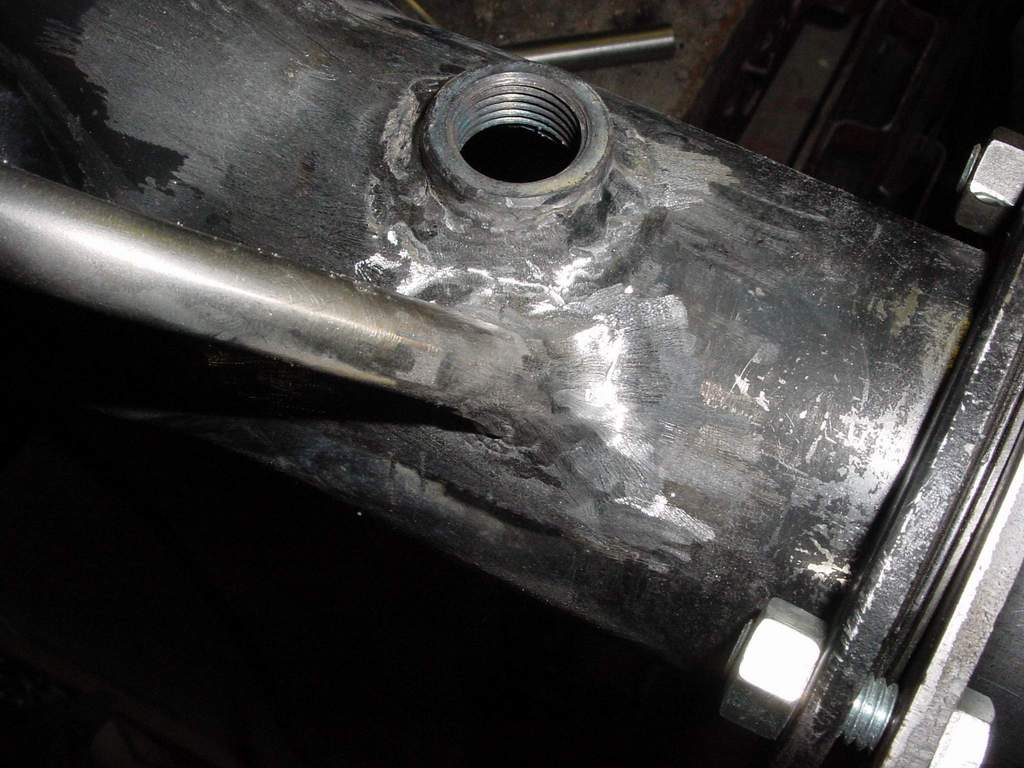

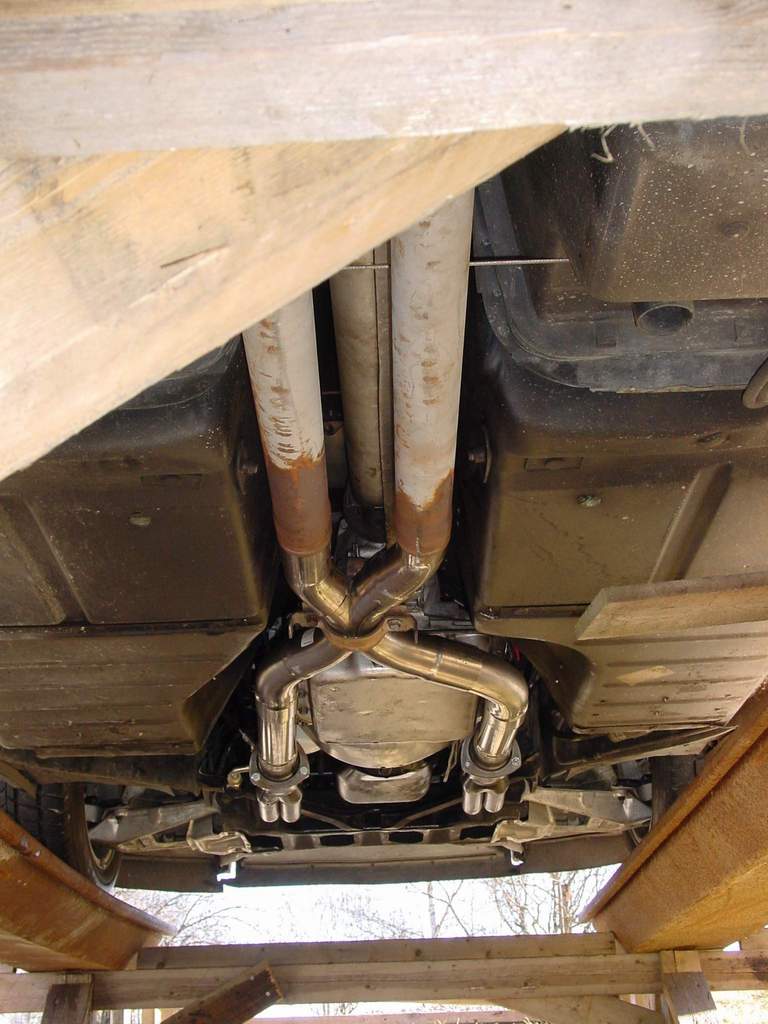

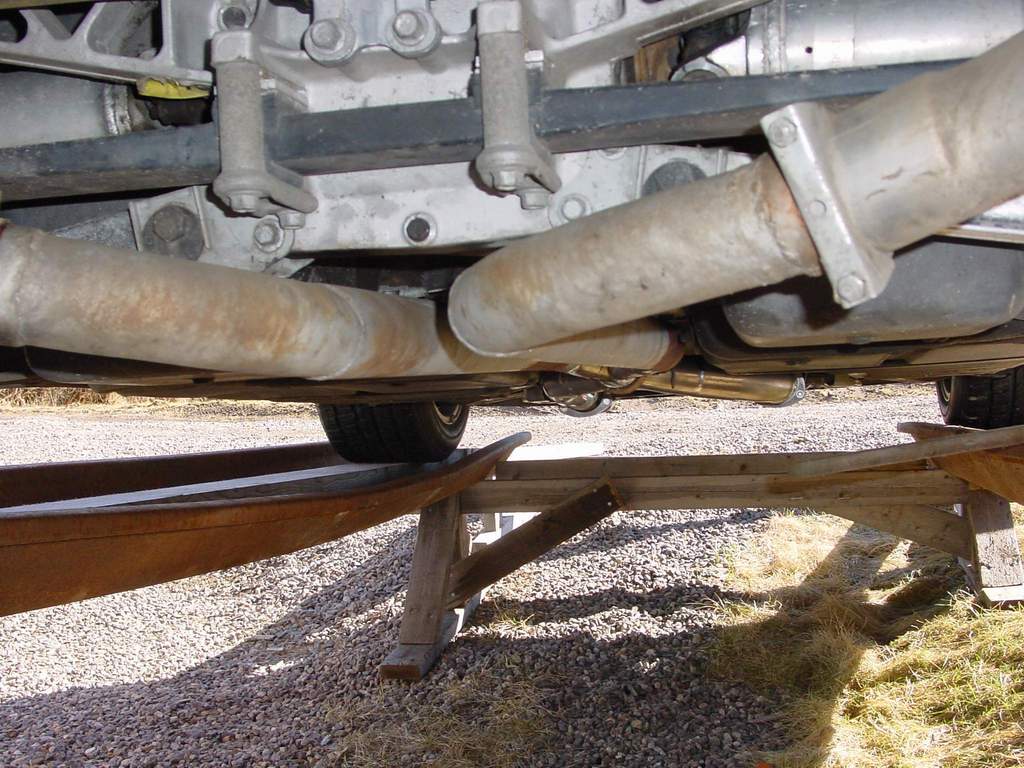

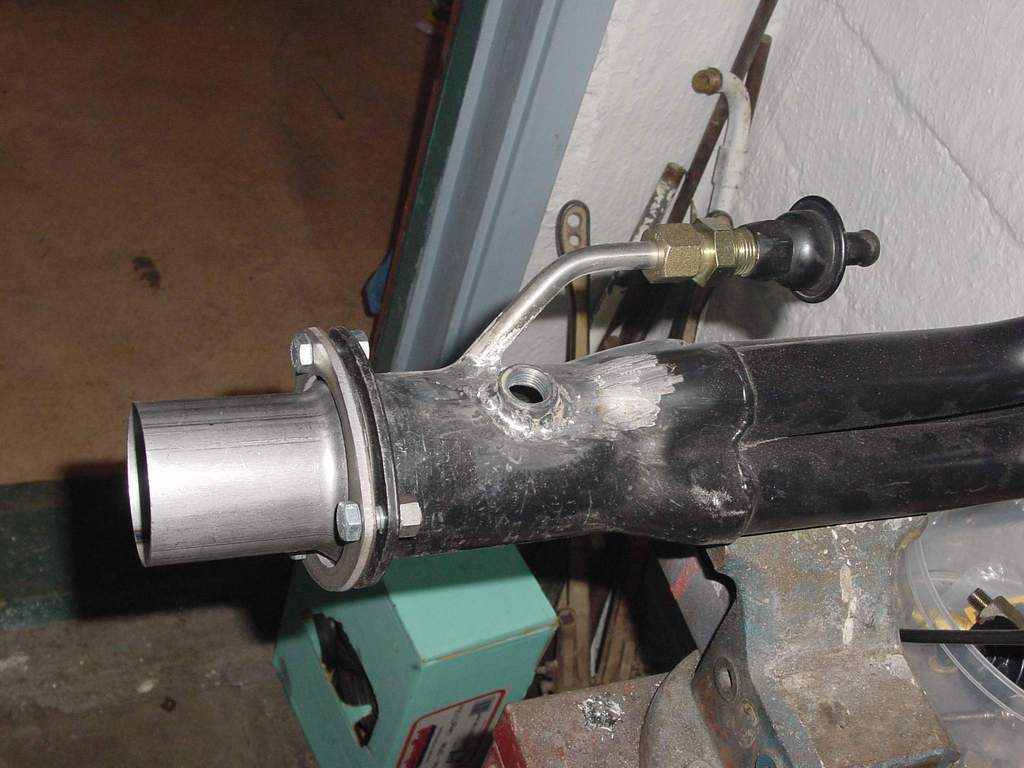

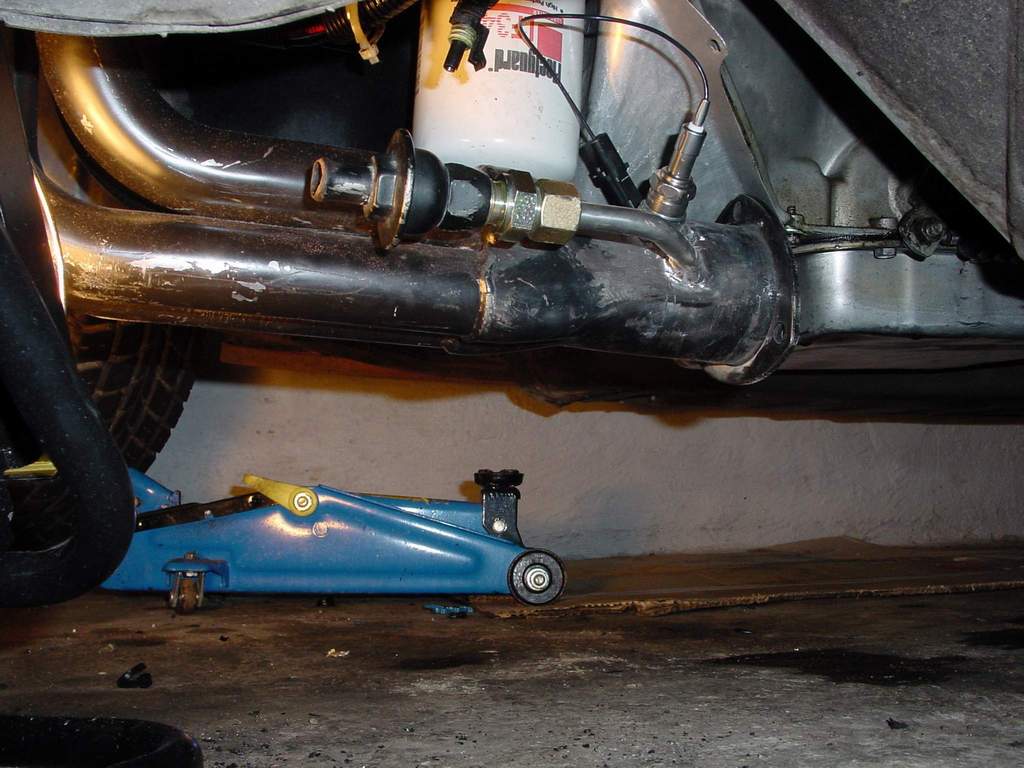

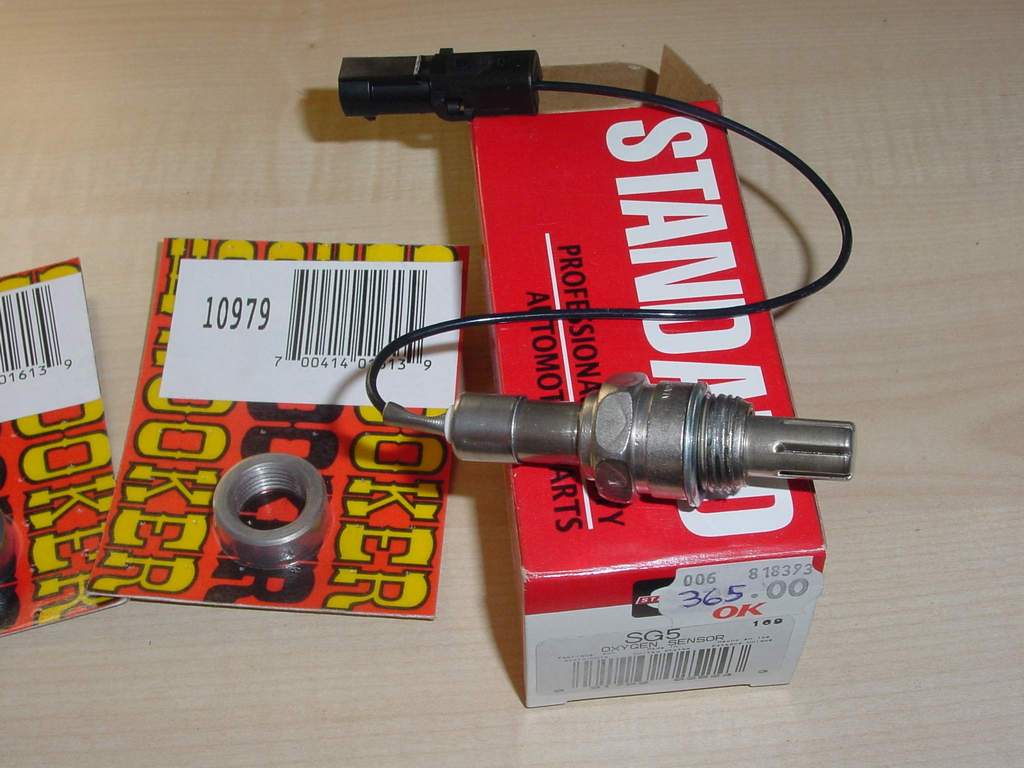

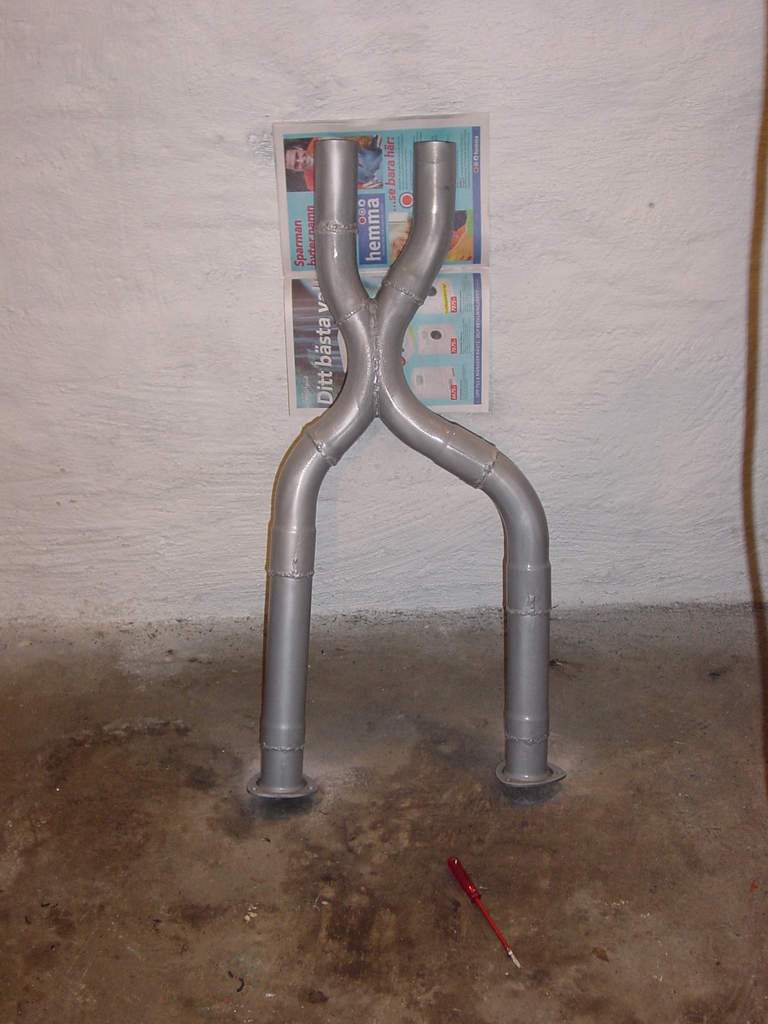

I installed Hedeman Headers that I bought at a swap meet. They were designed to fit the C3 Corvette. The drivers side was a perfect fit, but I had to modify the rear pipe on the passenger side for clearence. I installed one oxygen sensor on each collector, and a pipe for crankcase ventilation on the drivers side. I made a 2.5" X-Pipe that uses the stock mounting point at the transmission. I had already made a new 2.5" rear dual exhaust, so I re-used that.
